Structural characteristics of

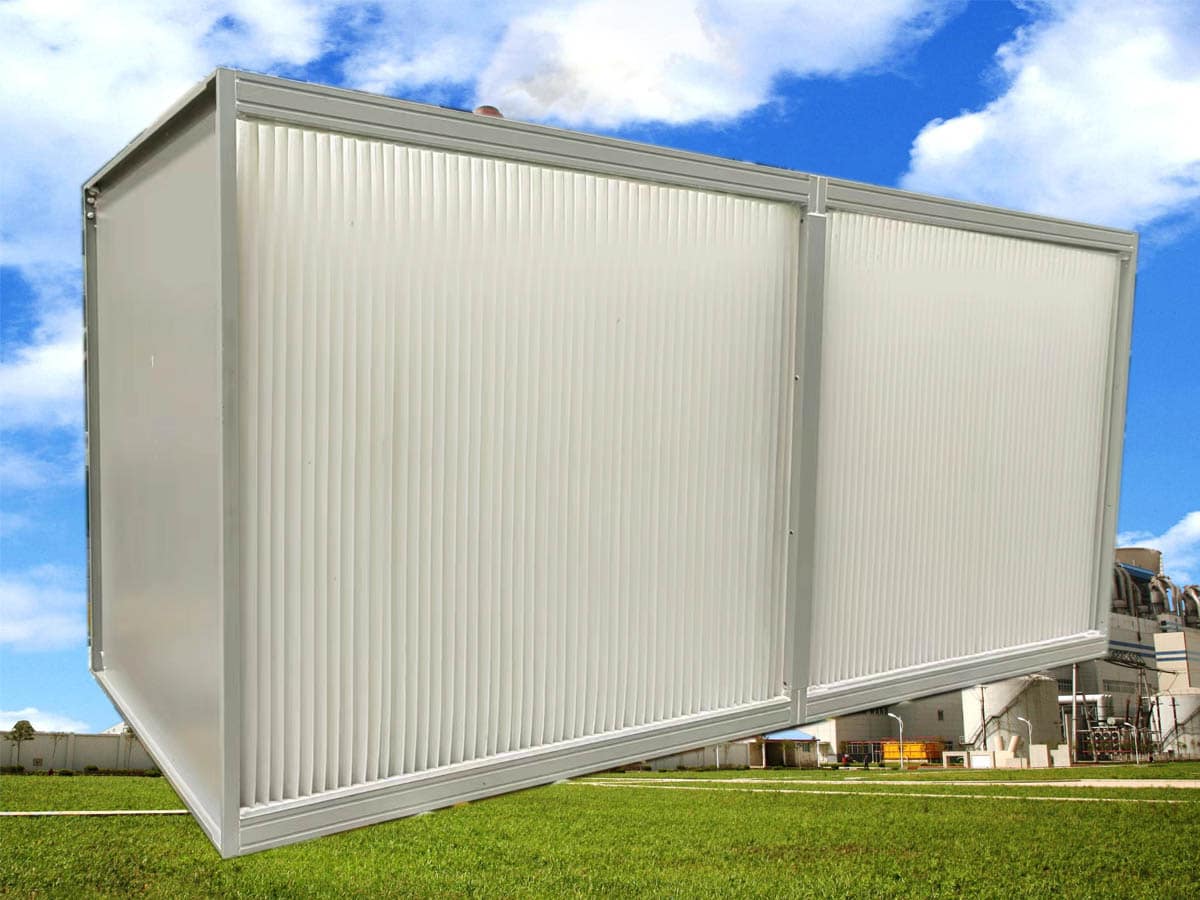

·BXB sensible heat exchanger can be made of seawater corrosion resistant hydrophilic aluminum plate, epoxy resin aluminum plate or stainless steel plate;
· The heat transfer surface of the heat exchanger was strengthened by heat transfer stamping, and the heat transfer area was increased by 10%-12%;
· The heat exchange sheet adopts enhanced punching and biting technology, with higher strength, better sealing, and air leakage rate less than 1%;
· The air passage is supported by a conductor convex cylinder with a high pressure difference capacity of 2500Pa for new exhaust;
· The normal service temperature of ordinary aluminum foil is not higher than 100℃; the temperature resistance of special sealing material can be up to 200℃; the temperature resistance of stainless steel can be 350℃;
· Tap water or neutral washing liquid can be used for direct cleaning, which is easy to use and easy to maintain;
· Different plate spacing (2.0mm-10.0mm) and any combination length can be provided.
The cost of cross flow heat exchangers made of polymer PP material is about half of that of ordinary aluminum foil heat exchangers, greatly reducing costs
